Wednesday, July 12, 2017

Table-driven holes in Solidworks

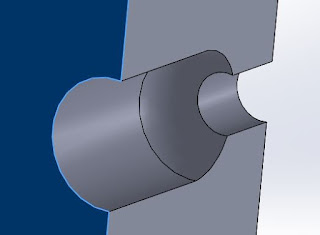

I recently had occasion to want to create a series of holes in Solidworks.  The hole definition isn't complicated but it has a few parts to it - the specific shape I am going for cups an LED and couples it to an acrylic light pipe.  This is embedded into a large plastic plate, which could be a base plate or perhaps a cover.  The hole shape, in section view, looks like this:




The hole shape is made by drawing a 2D profile them revolving it around the centerline, which in the view below is the on the left side.  The 2D shape, in profile, makes up one half of the hole.


I needed nine such holes but not on a regular pattern.  It turns out there is a way to duplicate features in SolidWorks but using it is a little confusing - the manual page and tutorial are pretty short.  I'm documenting the process here so I can give some tips (and remind myself how to do this a year from now when I probably will have forgotten the whole thing).

The first thing you need to do is to create a coordinate system.  This was for me one of the confusing parts.  The coordinate system defines an orientation (which direction is X, Y, and Z, including which way is positive and negative) and an origin (what point corresponds to coordinates 0,0,0).  There are a few ways to define a coordinate system.  For this, I'm setting an origin, Y, and Z.  From those the software figures our which way is X.

To begin, I've drawn the 'base' into which all these holes will be extruded:


I started the hole by using the hole wizard, but hole wizard isn't magical.  All it does is creates two 2D sketches then revolves the second one around a centerline:


The first sketch does nothing but define the center point of the hole.  The second sketch is the 2D hole shape listed above.

Next, what I did was to create a reference point that marks the center of the hole - essentially what this does is to bring the centerpoint of the hole out of the sketch and up to the 3D drawing.



Now I have my base with one hole in it:


The next step is to define a coordinate system.  In my case, the origin is the center of the hole.  This mean that in my table, the first hole will be at location 0,0 and all the "copies" will be relative to that:



Next I create the table.  I did this in excel.  By default the units will be in the same units as your document, but you can specify 'in' or 'mm' (or any other SolidWorks unit) if you like:


Finally, create the pattern:



A couple of things to note:

  • The coordinate system is placed at the point we created, so that's 0,0 - all the coordinates in the table will be relative to that
  • The "Feature" is the hole, created by the hole wizard (then its shape modified by me)


The result is my baseplate with all of the holes replicated at my X,Y locations:


Now don't ask me what it is (it's a secret) - I'll tell you next month!


Monday, May 15, 2017

Which is better?

I am making a Spring Boot app using Spring Data that has, as part of its function, an embedded wiki. Individual wiki pages have workflows associated with them. Rather than maintain a list of parent/child relationships for pages I'm using an implied hierarchical structure based on the 'path' columns that serve as the coordinates for each page. The hard part is finding only the direct descendants of each page. To do this, I look for paths that include the 'parent' but have no other path separators. In other words, descendants of labs would include /labs/electronics and /labs/bio but would not include /labs/electronics/equipment because, while equipment is a descendant of /labs it is not a direct descendant.

To accomplish this, I do two things:
  • Find the paths that begin with the parent's path, including trailing slash, for example /labs/. This selects all descendants of the parent.
  • Of those, find the ones who have NO OTHER SLASHES beyond the parent. This selects only the direct descendants.
Here are two ways to do it, both produce identical results:

Using JPQL
@Query("select w from WikiPage w " +
    " where w.path like concat(:path, '/', '%') " +
    " AND LOCATE('/', w.path, length(:path)+2) = 0")
public List<WikiPage>
    findDirectChildrenOfUsingAnnotationQuery(@Param("path") String path);

Using the Java-based Query DSL
@Override
public List<WikiPage> findDirectChildrenOfUsingQueryDSL(String searchPath) {
    CriteriaBuilder builder = em.getCriteriaBuilder();
    CriteriaQuer<WikiPage> query = builder.createQuery(WikiPage.class);
    Root<WikiPage> wikiPage_root = query.from(WikiPage.class);

    Expression<String> wikiPage_path = wikiPage_root.get("path");
    Predicate startsWithPath = builder.like(wikiPage_path,  searchPath + "/%");

    Expression<Integer> slashLocation = builder.locate(wikiPage_path, "/",
        searchPath.length()+2);
    Predicate noMoreDescendants = builder.equal(slashLocation, 0);

    query = query.where(builder.and(startsWithPath, noMoreDescendants));
    return em.createQuery(query.select(wikiPage_root)).getResultList();
}

Reasons to use the Java DSL
  • It is more refactorable ... but, a good IDE like IntelliJ can refactor JPQL just fine
  • It's more typesafe ... but not completely so, and again, IntelliJ does a pretty good job. You could even argue that it does better, because the Java DSL can't tell that "path" is a valid attribute of WikiPage, but in JPQL it could
  • Compiler-time errors if you screw up ... but again, IntelliJ already tells me if my JPQL is invalid
  • Certain operations - like the concat and strlen - are arguably better handled in java than by the db engine

The Java DSL is definitely harder to read. But I have a distaste for 'magical strings' which includes JPQL in a @Query annotation.

Thoughts?
